P.A.:
- Control: 24 Ch. Desk
with 8 aux. sends(24/8/2).
- Equalization: 1 stereo
unit of 1/3 of 8th. 31 bands..
- Dinamics & effects:
8 Channels with noise gates.
1 Unit of strereo compression.
1 Unit of digital reverb Lexicon PCM-70/80 or similar.
1 Unit multieffects Yamaha SPX-900/1000 or similar.
- Amplification: 3 ways
active system with appropriate power for the venue.
MONITORS:
Note: In case
of not having monitors control from the stage, possibility of having
at least equalizers on P.A. control desk.
- Control: 24 channels
desk, 8 independent sends, master L&R.
- Equalizers: 6 Eq. of
31 bandss, 1/3 of 8th.
- Amplification:
3 Front monitors of 2 ways
1 Drumfill monitor 2/3 ways (1.000 w).
1 Sidefill monitor 2/3 ways (2.000 w.)
CHANNELS DISTRIBUTION:
|
CH
|
INSTRUMENT
|
MIC
|
LINE
|
INSERT
|
|
1
|
BASS DRUM
|
AKG. D112
|
|
GATE
|
|
2
|
SNARE DRUM
|
SM-57
|
|
GATE
|
|
3
|
H-H
|
AKG-451
|
|
|
|
4
|
TOM 1
|
MD-421 UD
|
|
GATE
|
|
5
|
TOM 2
|
MD-421 UD
|
|
GATE
|
|
6
|
TOM 3
|
MD-421 UD
|
|
GATE
|
|
7
|
FLOOR TOM
|
MD-421 UD
|
|
GATE
|
|
8
|
OH
|
AKG-414
|
|
GATE
|
|
9
|
OH
|
AKG-414
|
|
GATE
|
|
10
|
BASS
|
AKG D112
|
|
COMP.
|
|
11
|
BASS
|
|
AR-116
|
|
|
12
|
GUITAR 1
|
SM-57
|
|
|
|
13
|
GUITAR 2
|
SM-57
|
|
|
|
14
|
VOICE
|
SM-58 (inalámbrico)
|
|
COMP.
|
|
15
|
FX RETURN
|
|
|
|
|
16
|
FX RETURN
|
|
|
|
|
17
|
FX RETURN
|
|
|
|
|
18
|
FX RETURN
|
|
|
|
MONITORS SEND:
|
SEND
|
LINE
|
AMPLIFICATION
|
|
1
|
DRUMS
|
DRUMFILL
|
|
2
|
GUITAR 1
|
FRONT MONITOR
|
|
3
|
GUITAR 2
|
FRONT MONITOR
|
|
4
|
BASS
|
FRONT MONITOR
|
|
5
|
VOICE
|
FRONT MONITOR
|
|
L
|
LEFT
|
SIDEFILL
|
|
R
|
RIGHT
|
SIDEFILL
|
BACKLINE:
- Drumset with 1 bass-drum, 2 air-toms + 1 floor-tom, snare-drum
support, hi-hat support y 5 cymbals supports.
- 2 Marshall Guitar Cabinets (100w. Min) + Amplifiers
- 1 Trace Elliott bass amp. (120w. Min)
- 1 Cordless microphone for voice. Shure SM-58 (if possible)
POSITION ON STAGE:

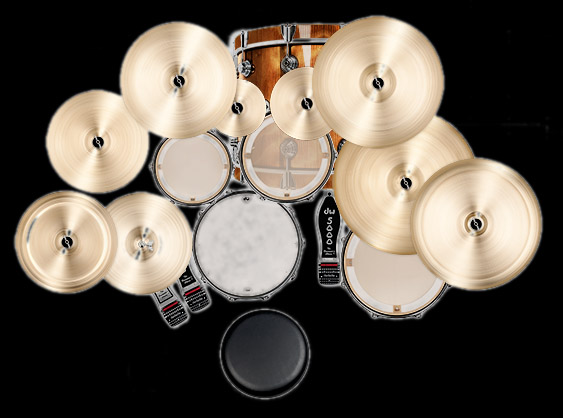

DRUM SET:
|
DRUMS
|
CYMBALS
|
Bass-drum: 22"
Snare: 14"
Toms: 12", 13", 16"
|
Ride:
22"
HiHat: 14"
Crash: 14", 16", 18"
Splash: 10", 8"
China: 18", 14"
|
|
